Description
The Hurricane SA 3SD2/15 borehole pump comes complete with a 0.37Kw 220V submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 62m.
Operating Conditions
- Maximum fluid temperature: up to 35°C
- Maximum sand content: 0.25%
- Minimum borehole diameter: 3” (75cm)
Pump & Motor
Single-Phase : 220V – 240V 0.37KW 0.5HP / 50Hz
Warranty: 12 Month
According to our general sales conditions
Specifications
- Speed: 2850RPM
- Power : 0.37KW
- Power : 0.5HP
- Outlet : 32mm
- Pump Diameter: 750mm
- Pump Length: 428mm
- Pump Weight : 3.5KG
| Output | 10L/min | 30L/min | 45L/min |
| Depth | 62m | 49m | 27m |

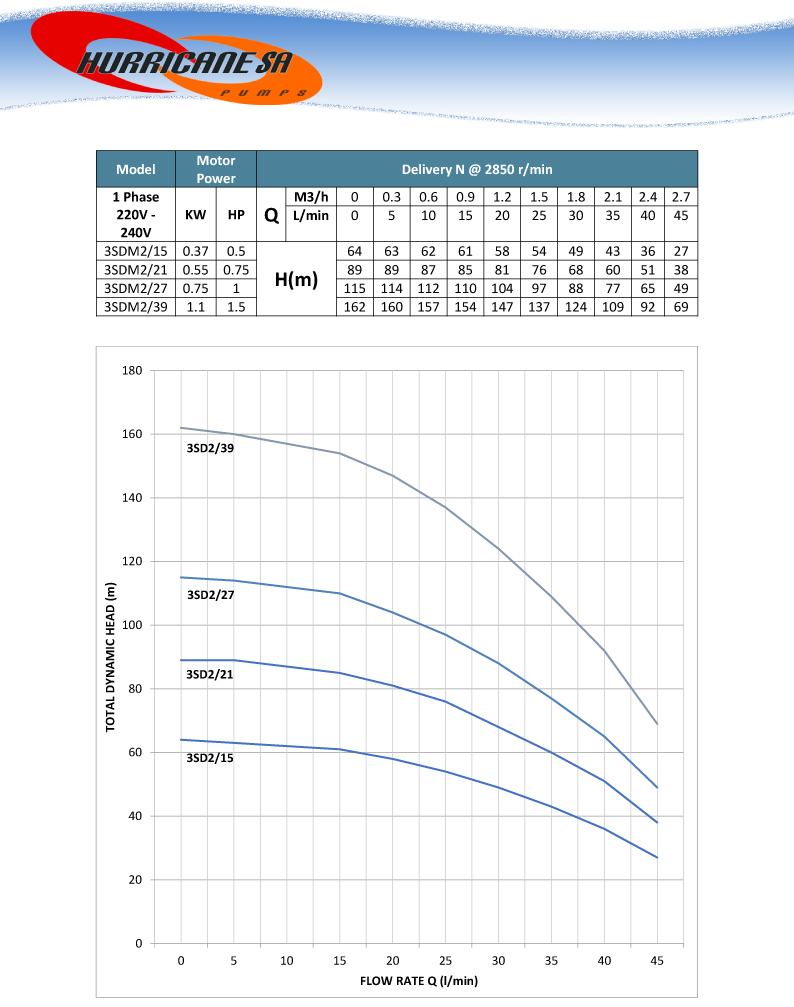

Water Delivery Pump Curve
