Description

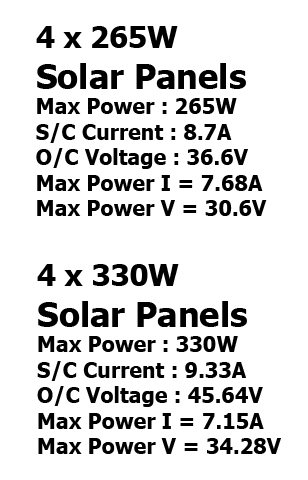

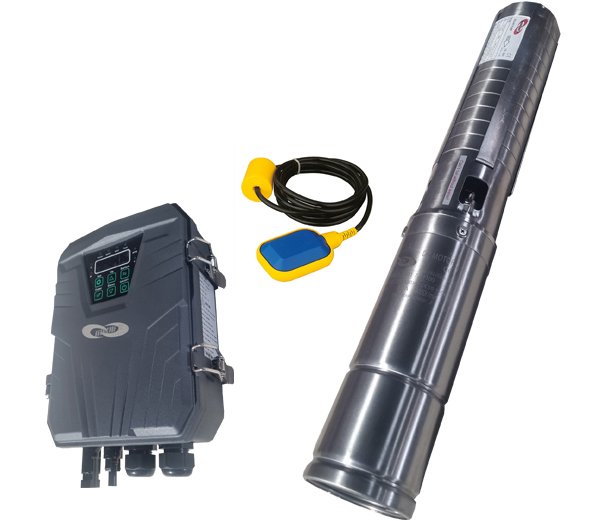

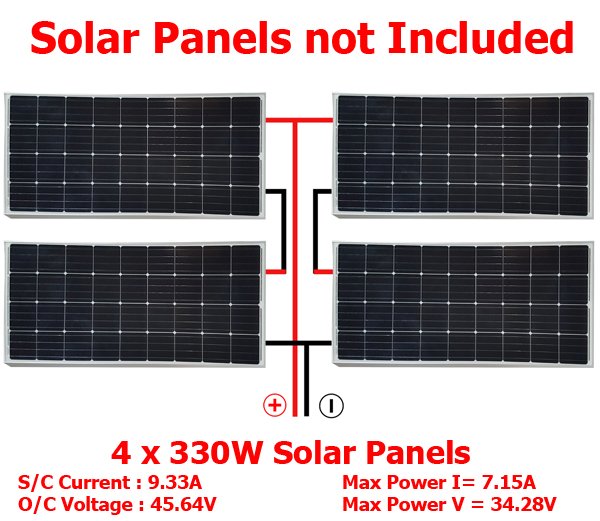

The Hurricane 3EPC3.5-80-48-600 solar borehole pump comes complete with 0.6KW 48V submersible motor and pump automatic 48V control box with water level sensors and is capable of delivering up to 500L/hour at a depth of 75m. (Solar panels not included, requires solar panels)
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 3″ (7.5cm)
Motor, Pump & Control Box
Solar : 48V 0.6KW
Equipped with an automatic (water level sensors) control box 48V 0.6KW
Warranty : 12 Month
According to our general sales conditions
Specifications
- Power : 0.6KW
- H/Max : 80M
Water Delivery Pump Curve
| 3EPC3.5-80-48V-600W | 5 | 18 | 33 | 47 | 60 | 68 | 75 | DEPTH | |
| 3” BRUSHLESS | 3200 | 3000 | 2500 | 2000 | 1500 | 1000 | 500 | L/H | |
| 48V 600W H/MAX 80M |
