Description
Rated flow(m³/h):
Rated head(m):
Efficiency(%):
NPSHr(m):
Rated Speed(rpm): 2850
Technique

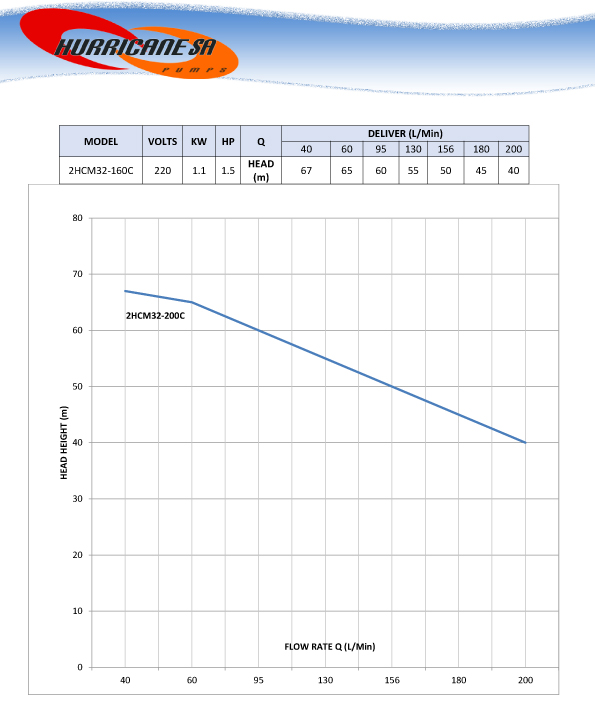

Flow range (m³/h): 250L/MIN
Maximum lift: 70m
Material
impeller: cast iron
Pump body: cast iron
Working conditions
Medium temperature(℃): -10℃～+85℃
Maximum ambient temperature(℃): +40℃
Liquid delivered: Liquid without solid particles and long fibres, low viscosity，non-combustible，non-corrosion liquid or other liquid similar to water
Critical cavitation margin(m):
Working pressure(MPa):
Installation
Structure Type: Non-standard motor (Coaxial)
Connection Code: Flange connection / thread-connection
Inlet Diameter(mm): DN65
Outlet Diameter(mm): DN40
Motor
Motor Phase: Single Phase
Protection Class:
Motor pole number:
Insulation Class:
Motor Power(kW): 3kW
Motor model: 2HCM32/200C
Power Frequency: 50Hz
Rated Voltage (V): 220V
Rated Current (A):
Energy Efficiency Level: Power factor:
Seal
Machinery Seal:

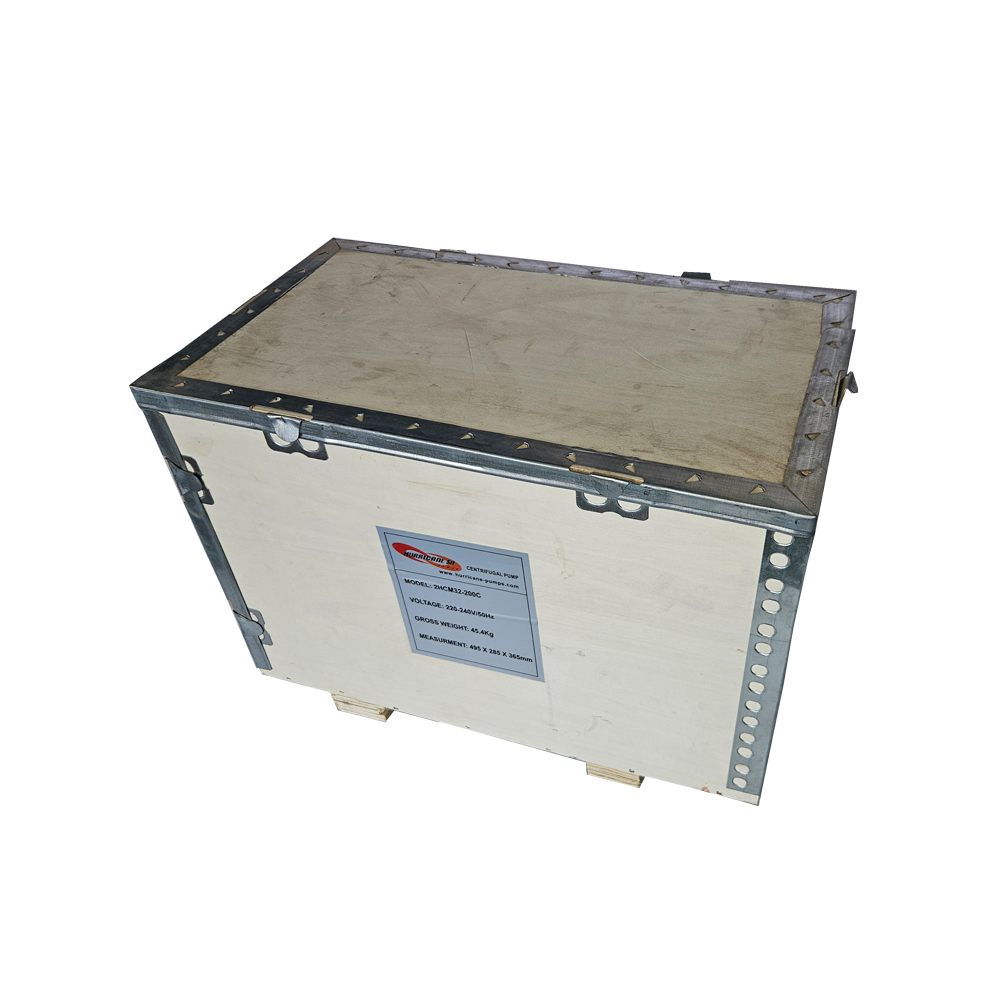

Pack
Net weight(kg): 44kg
Gross weight(kg): 44kg
Package size: 542x330x367mm
Warranty: 12 Month
According to our general sales conditions
