Description
Rated flow(m³/h): 20
Rated head(m): 29
Efficiency(%): 71
NPSHr(m): 2
Rated Speed(rpm): 2900
Material
impeller: cast iron
Pump body: cast iron
Working conditions
Medium temperature(℃): -10℃～+85℃
Maximum ambient temperature(℃): +40℃
Liquid delivered: Liquid without solid particles and long fibres, low viscosity，non-combustible，non-corrosion liquid or other liquid similar to water
Critical cavitation margin(m): 2m
Installation
Structure Type: Non-standard motor (Coaxial)
Connection Code: Flange connection / thread-connection
Inlet Diameter(mm): DN65
Outlet Diameter(mm): DN40
Motor
Motor Phase: Three phase
Protection Class: IP54
Motor pole number: 2
Insulation Class: F
Motor Power(kW): 3kW
Motor model: HST32-200/30
Power Frequency: 50Hz
Rated Voltage (V): 380V
Energy Efficiency Level: Power factor:
Seal
Machinery Seal: TF PB20-22
Warranty: 12 Month
According to our general sales conditions

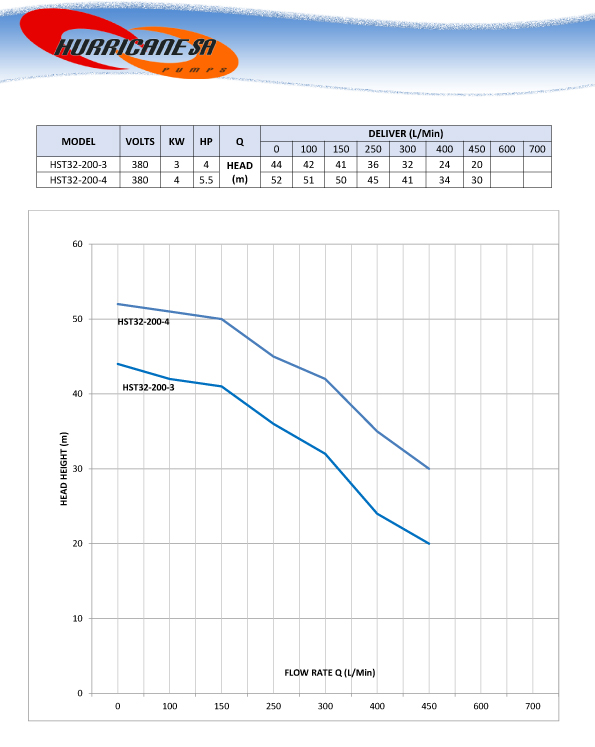

Water Delivery Pump Curve
