Description
The Hurricane SA 4SA4/16 borehole submersible pump end requires a 1.3Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 110m.
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Single Phase : 220V – 240V 1.3KW 1.75HP / 50Hz or
Three Phase : 380V – 415V 1.3KW 1.75HP / 50Hz
Equip with either a standard (manual) or an automatic control box 1.3KW 1.75HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 1.3KW
- Power : 1.75HP
- Outlet : 32mm
- Pump Diameter : 100mm
- Pump Length : 720mm
- Pump Wieght : 5.9KG
| Output | 20L/min | 60L/min | 100L/min |
| Depth | 110m | 88m | 37m |

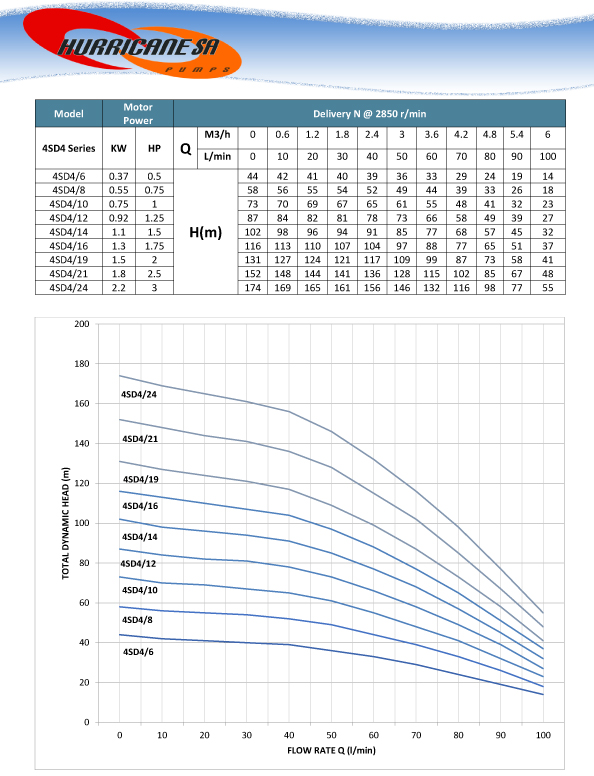

Water Delivery Pump Curve
