Description
The Hurricane SA 4SA2/15 borehole submersible pump end requires a 0.75Kw submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 105m.
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Single Phase : 220V – 240V 0.75KW 1HP / 50Hz or
Three Phase : 380V – 415V 0.75KW 1HP/ 50Hz
Equip with either a standard (manual) or an automatic control box 0.75KW 1HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 0.75KW
- Power : 1HP
- Outlet : 32mm
- Pump Diameter : 100mm
| Output | 5L/min | 30L/min | 55L/min |
| Depth | 105m | 90m | 48m |

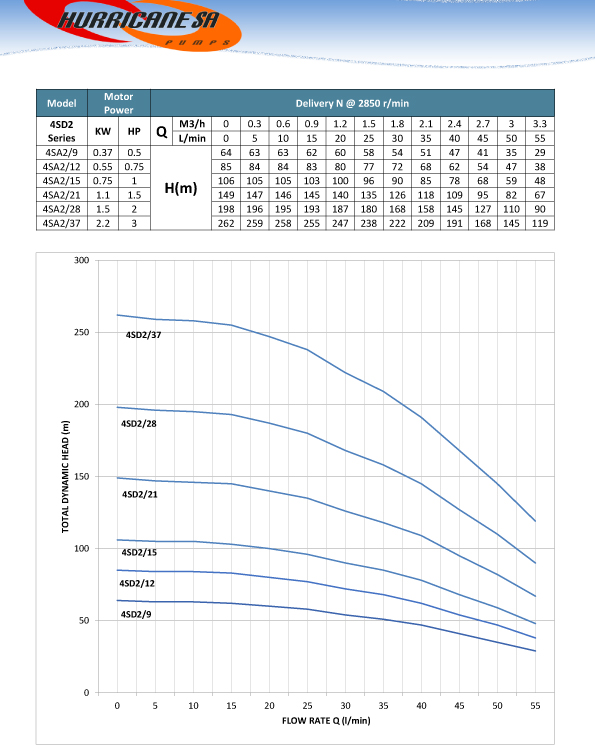

Water Delivery Pump Curve
