Description

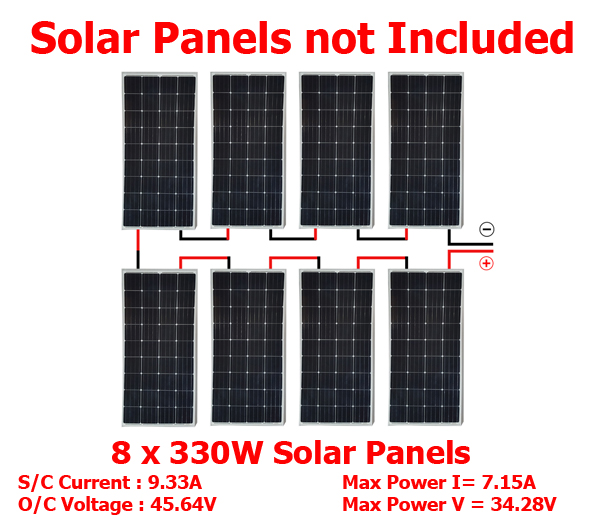

The Hurricane 4ESC5.2-255-300-2200 AC/DC solar borehole pump comes complete with 2.2KW AC48-280V/DC80-430V submersible motor and pump automatic AC85V-280V/DC80-430V control box with water level sensors and is capable of delivering up to 1000L/hour at a depth of 240m. (Solar panels not included, requires solar panels)
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10cm)
Motor, Pump & Control Box
Solar : AC85-280V/DC80-430V 2.2KW
Equipped with an automatic (water level sensors) control box AC85-280V/DC80-430V 2.2KW
Warranty : 12 Month
According to our general sales conditions
Specifications
- Power : 2.2KW
- H/Max : 240M
Water Delivery Pump Curve
| 4ESC5.2-255-300-2200 AC/DC | 30 | 60 | 90 | 120 | 150 | 180 | 210 | 240 | DEPTH | |
| 4” STAINLESS STEEL B/LESS | 5300 | 5000 | 4500 | 4100 | 3800 | 3000 | 2000 | 1000 | L/H | |
| V 2200W H/MAX M |
