Description
The Hurricane SA 4SA16/10 borehole submersible pump end requires a 2.2Kw submersible motor to drive it and is capable of delivering up to 100L/min at a depth of 50m.
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Three Phase : 380V – 415V 2.2KW 3HP / 50Hz
Equip with an automatic control box 2.2KW 3HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 2.2KW
- Power : 3HP
- Outlet : 50mm
- Pump Diameter : 110mm
- Pump Length : 1000mm
- Pump Wieght : 8.7KG
| Output | 100L/min | 200L/min | 300L/min |
| Depth | 50m | 40m | 27m |

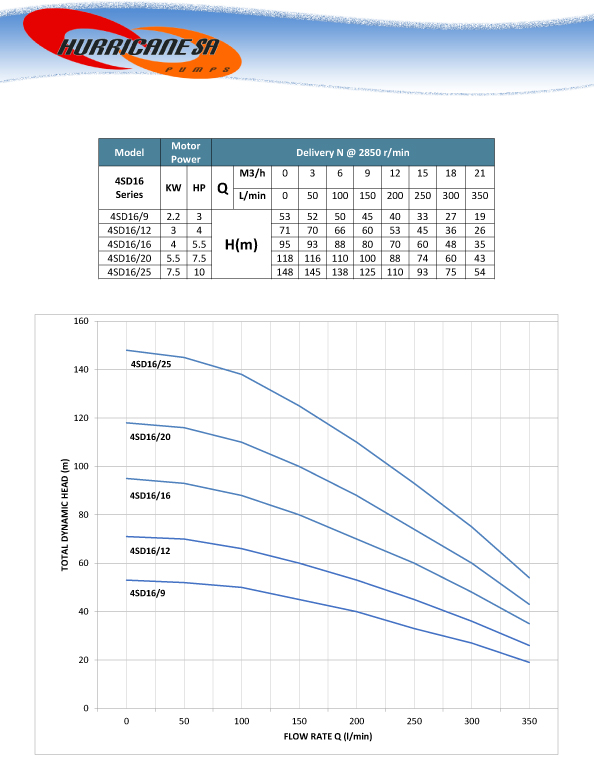

Water Delivery Pump Curve
