Description
The Hurricane SA 4SA12/19 borehole submersible pump end requires a 4Kw submersible motor to drive it and is capable of delivering up to 90L/min at a depth of 102m.
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Three Phase : 380V – 415V 4KW 5.5HP / 50Hz
Equip with an automatic control box 4KW 5.5HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 4KW
- Power : 5.5HP
- Outlet : 32mm
- Pump Diameter : 100mm
- Pump Length : 1204mm
- Pump Wieght : 10KG
| Output | 90L/min | 180L/min | 270L/min |
| Depth | 102m | 73m | 25m |

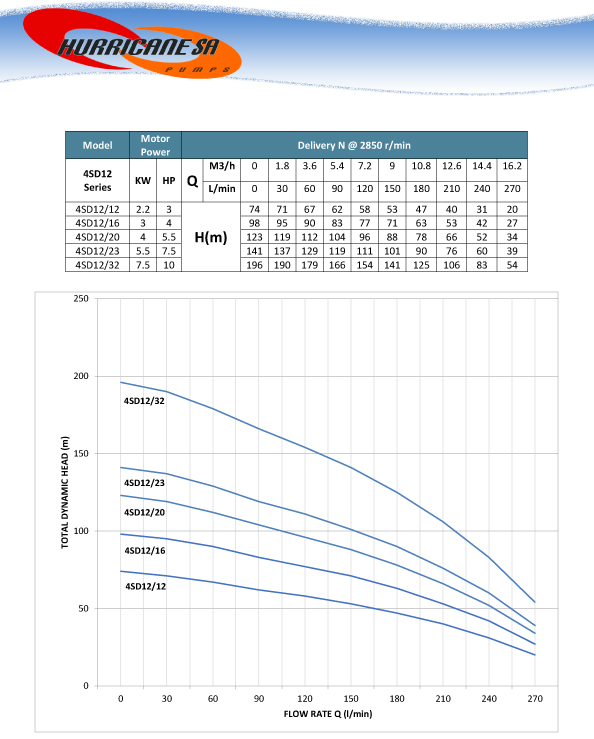

Water Delivery Pump Curve
