Description
The Hurricane SA 6SQ45/7 borehole 6″ submersible pump end requires a 13KW motor to drive it and is capable of delivering up to 100L/min at a depth of 99m.
Operating Conditions
- Maximum fluid temperature : up to +50°C
- Maximum sand content : 0.5%
- Maximum Immersion : 100m
- Minimum borehole diameter : 6″ (15.24cm)
Motor & Pump
Three Phase : 380V – 415V 13KW 17.5HP / 50Hz
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 13KW
- Power : 17.5HP
- Pump Diameter : 150mm
- Pump Length : 1150mm
- Pump Weight : 54.2KG
| MODEL | KW | HP | DELIVERY | ||||||||||
| L/HOUR | 0 | 6000 | 12000 | 18000 | 24000 | 30000 | 36000 | 42000 | 48000 | 54000 | |||
| L/MIN | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | |||
| 6SQ45/4 | 7.5 | 10 | HEAD (m) | 59 | 57 | 55 | 54 | 53 | 50 | 46 | 42 | 36 | 29 |
| 6SQ45/5 | 9.2 | 12.5 | 74 | 71 | 69 | 68 | 66 | 63 | 58 | 52 | 45 | 37 | |
| 6SQ45/7 | 13 | 17.5 | 104 | 99 | 97 | 95 | 92 | 88 | 81 | 73 | 63 | 51 | |
| 6SQ45/8 | 15 | 20 | 119 | 114 | 111 | 108 | 106 | 100 | 93 | 84 | 72 | 58 | |
| 6SQ45/9 | 18.5 | 25 | 133 | 128 | 124 | 122 | 119 | 113 | 104 | 94 | 81 | 66 | |

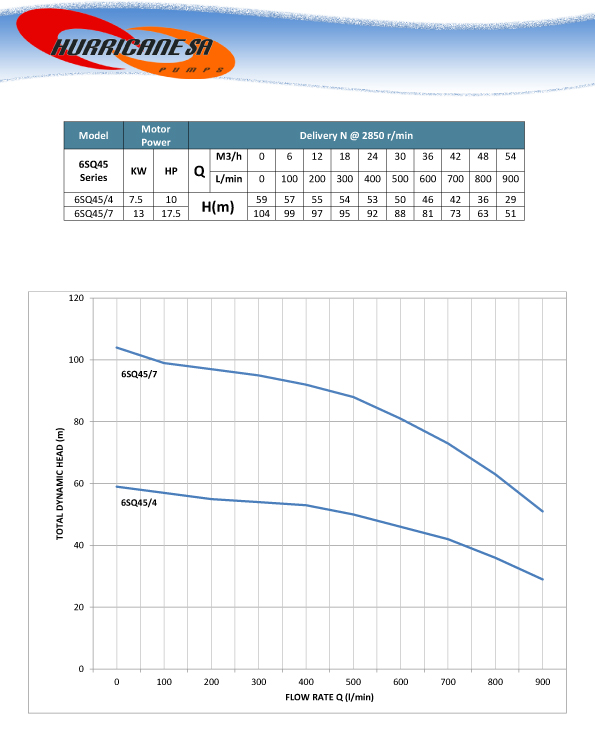

Water Delivery Pump Curve
