Description
The T8-50 VSD pressure pump is a 1.5KW 220V variable speed drive pressure pump with a built-in pressure controller. It has a rated flow of 8000L/Hour at 48 meters head and has a max flow of 19,200L/Hour
It has an inlet size of 1″ and an outlet size of 1″.
Operating Conditions
- Maximum fluid temperature: 40°C
- Maximum flow 19,200L/Hour
- Max head height: 48m
- Maximum suction height: 60m
Warranty: 12 Month
According to our general sales conditions
Specifications
- Voltage: 220V – 240V 50Hz
- Power: 1.5KW
- Power: 2HP
- Outlet Size: 50mm (2″)
- Inlet Size: 50mm (2″)
Pump
- Head up to 55M
- Max flow: 18,000L/Hour

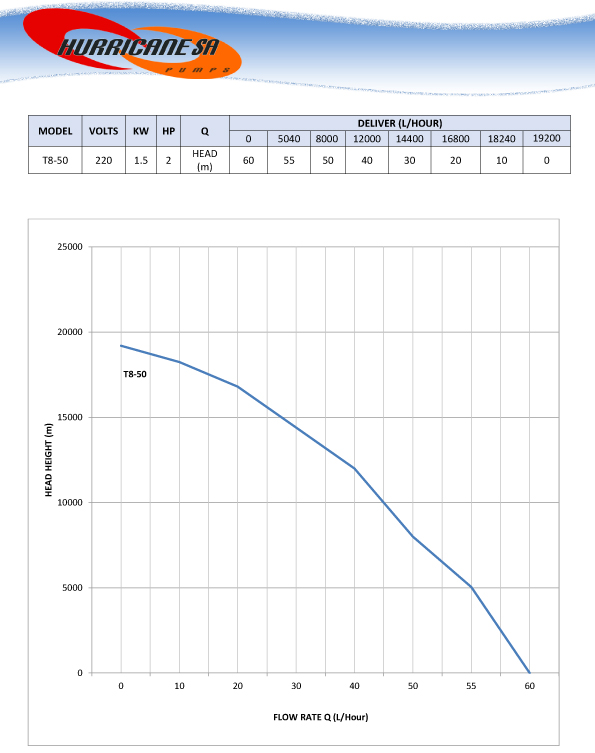

Water Delivery Pump Curve
